JUCE 5.4.0 Released

[t0m]

Headline features

macOS Mojave and iOS 12 support

JUCE has been updated to fully support the new macOS 10.14 Mojave and iOS 12 updates.

Windows hiDPI support

JUCE now supports building per-monitor DPI-aware applications on Windows 8.1+, meaning that JUCE applications will scale dynamically with the DPI of the monitor that they are on ensuring crisp UIs on high resolution displays. The VST client and hosting code has also been updated to support the Windows scaling APIs making it possible to build and host DPI-aware VST2 and VST3 plug-ins on Windows, and the AudioPluginHost example has been updated to showcase these changes.

Unity native plug-in support

JUCE now supports building Unity native audio plug-ins, which can used within the Unity Editor, allowing you to leverage JUCE’s DSP and audio processing code within your Unity projects. More details on how to set this up can be found here.

Features

Microsoft BLE MIDI support

JUCE now supports the WinRT MIDI API on the latest version of Windows 10, providing access to improved throughput performance and BLE MIDI devices

Plug-in parameter groups

Plug-in parameters can be organised into groups, allowing plug-in hosts to show a hierarchical view of your plug-in’s controls (see this post)

Support for production-ready Android OBOE

Google’s new audio API, OBOE, is supported where available on a device

Video playback support on Android and iOS

On mobile platforms JUCE can use native APIs for video playback

AudioProcessorValueTreeState improvements

The AudioProcessorValueTreeState now supports plug-in parameter groups and JUCE’s built-in plug-in parameter types (see this post

Support for Android Studio 3.2

JUCE creates projects compatible with the latest version of the Android IDE

Projucer

• Support for adding Xcode subprojects

• Made UI application templates fullscreen on mobile devices

• Added an option to set the /MP (multi-processor compilation) option in the Visual Studio exporter

• Fixed a bug in the VS exporter causing the PlatformToolset property to be duplicated

Audio/MIDI and Plug-Ins

• Added MIDI output capability to the standalone plug-in

• Made the dsp::Oversampling class more customisable

• Added detection for some AVX512 features

• Added support for Bela MIDI input

• Added support for more sample rates to audio devices

• Added AudioProcessLoadMeasurer utility class

• Added a handleVstHostCallbackAvailable method to the VSTCallbackHandler interface

• Added support for MIDI controller messages when hosting VST3 plug-ins

• Added support for EQ curve graphs via a new AudioProcessor callback AudioProcessor::getAAXCurve()

• macOS: Fixed a potential out-of-bounds array access in the CoreAudio internals

• macOS: Fixed a VST3 resizing bug in FL Studio

• macOS: Fixed a crash hiding an NSView in Vienna Ensemble Pro

• Set the note-on time of MPESynthesiserVoice correctly

• Fixed a potential AudioPluginInstance leak in AudioPluginFormatManager::createPluginInstanceAsync()

• Ensure that setting a plug-in to be non-resizable using AudioProcessorEditor::setResizable() does not overwrite custom bounds constrainers

• Make sure that the velocity value set in MidiKeyboardComponent::setVelocity() is used when sending notes

• Linux: Fix problem with ALSA midi name in console applications

Mobile

• Android: Added broadcast address support

Desktop

• Linux: Added an option to lazily load libcurl symbols only when they are needed
• macOS: Fixed some Objective-C id -> auto* conversion warnings
• Linux: Fixed an issue with the X11 web browser not rendering content
• Windows: Set the MB_TOPMOST flag for native alert windows if there are any alwaysOnTop JUCE windows so they don’t get stuck behind

GUI, Graphics & OpenGL

• Linux: Fixed some potential deadlocks using OpenGL

Misc

• Replaced ArrayAllocationBase with a safer storage container

• Made many JUCE classes trivially copyable

• Added converting constructors to OwnedArray, ArrayBase and HeapBlock

• Added some macros for asserting when functions are called in an unsafe manner outside the message thread

• Added a HeavyweightLeakedObjectDetector class and corresponding JUCE_HEAVYWEIGHT_LEAK_DETECTOR macro

• Added a std::make_unique implementation to systems lacking c++14 support

• Added classes ArgumentList and ConsoleApplcation which are helpers for writing console applications that parse and resolve command-line arguments

• Various IPAddress and MACAddress class improvements

• New NetworkServiceDiscovery::Advertiser and NetworkServiceDiscovery::AvailableServiceList classes to implement a simple protocol for discovering and connecting devices on the LAN

• LittleFoot: Added support for global arrays

• LittleFoot: Added the ability to #include other scripts

• Fixed a bug adding ReferenceCountedArrays

• Fixed a bug adding derived ReferenceCountedObjects to base class ReferenceCountedArrays

• Fixed some dangling listeners in the BLOCKS demos

• Fixed a some asan and ubsan warnings

• Fixed an issue adding two RectangleLists

• Fix for JSON stringification of INF and NaN double values

• Fixed an issue when connecting to a non-existent NamedPipe

BREAKING CHANGES

Change

The use of WinRT MIDI functions has been disabled by default for any version
of Windows 10 before 1809 (October 2018 Update).

Possible Issues
If you were previously using WinRT MIDI functions on older versions of Windows
then the new behaviour is to revert to the old Win32 MIDI API.

Workaround
Set the preprocessor macro JUCE_FORCE_WINRT_MIDI=1 (in addition to the
previously selected JUCE_USE_WINRT_MIDI=1) to allow the use of the WinRT API on
older versions of Windows.

Rationale
Until now JUCE’s support for the Windows 10 WinRT MIDI API was experimental,
due to longstanding issues within the API itself. These issues have been
addressed in the Windows 10 1809 (October 2018 Update) release.

Change

The VST2 SDK embedded within JUCE has been removed.

Possible Issues

1. Building or hosting VST2 plug-ins requires header files from the VST2 SDK,
   which is no longer part of JUCE.
2. Building a VST2-compatible VST3 plug-in (the previous default behaviour in
   JUCE) requires header files from the VST2 SDK, which is no longer part of
   JUCE. When a new JUCE plug-in project is created the option
   JUCE_VST3_CAN_REPLACE_VST2 will be set to zero.

Workaround

1. The VST2 SDK can be obtained from the vstsdk3610_11_06_2018_build_37 (or
   older) VST3 SDK or JUCE version 5.3.2. You should put the VST2 SDK in your
   header search paths or use the "VST (Legacy) SDK Folder" fields in the
   Projucer.
2. For new plug-in projects where you will be releasing both a VST2 and VST3
   version, and you want the VST3 plug-in to replace the VST2 plug-in in
   hosts that support it, then you should enable the JUCE_VST3_CAN_REPLACE_VST2
   option.

Rationale
Distributing VST2 plug-ins requires a VST2 license from Steinberg. Following
Steinberg’s removal of the VST2 SDK from their public SDKs we are also removing
the VST2 SDK from the JUCE codebase.

Change

The AudioProcessorValueTreeState::createAndAddParameter function has been
deprecated.

Possible Issues
Deprecation warnings will be seen when compiling code which uses this function
and eventually builds will fail when it is later removed from the API.

Workaround
Previous calls to

createAndAddParameter (paramID, paramName, ...);

can be directly replaced with

using Parameter = AudioProcessorValueTreeState::Parameter;
createAndAddParameter (std::make_unique<Parameter> (paramID, paramName, ...));

but an even better approach is to use the new AudioProcessorValueTreeState
constructor where you can pass both RangedAudioParameters and
AudioProcessorParameterGroups of RangedAudioParameters to the
AudioProcessorValueTreeState and initialise the ValueTree simultaneously.

Rationale
The new createAndAddParameter method is much more flexible and enables any
parameter types derived from RangedAudioParameter to be managed by the
AudioProcessorValueTreeState.

Change

The Projucer’s per-exporter Android SDK/NDK path options have been removed.

Possible Issues
Projects that previously used these fields may no longer build.

Workaround
Use the Projucer’s global paths settings to point to these directories, either
by opening the “Projucer/File->Global Paths…” menu item or using the
“–set-global-search-path” command-line option.

Rationale
Having multiple places where the paths could be set was confusing and could
cause unexpected mismatches.

Change

SystemStats::getDeviceDescription() will now return the device code on iOS e.g.
"iPhone7, 2" for an iPhone 6 instead of just "iPhone".

Possible Issues
Code that previously relied on this method returning either explicitly "iPhone"
or "iPad" may no longer work.

Workaround
Modify this code to handle the new device code string e.g. by changing:

SystemStats::getDeviceDescription() == "iPhone";

to

SystemStats::getDeviceDescription().contains ("iPhone");.

Rationale
The exact device model can now be deduced from this information instead of just
the device family.

Change

DragAndDropContainer::performExternalDragDropOfFiles() and
::performExternalDragDropOfText() are now asynchronous on Windows.

Possible Issues
Code that previously relied on these operations being synchronous and blocking
until completion will no longer work as the methods will return immediately and
run asynchronously.

Workaround
Use the callback argument that has been added to these methods to register a
lambda that will be called when the operation has been completed.

Rationale
The behaviour of these methods is now consistent across all platforms and the
method no longer blocks the message thread on Windows.

Change

AudioProcessor::getTailLengthSeconds can now return infinity for
VST/VST3/AU/AUv3.

Possible Issues
If you are using the result of getTailLengthSeconds to allocate a buffer in
your host, then your host will now likely crash when loading a plug-in with an
infinite tail time.

Workaround
Re-write your code to not use the result of getTailLengthSeconds directly to
allocate a buffer.

Rationale
Before this change there was no way for a JUCE plug-in to report an infinite
tail time.

Web version

JUCE 5.4 | JUCE

[stfufane]

Amazing news!
Does the Microsoft BLE MIDI support mean that the seaboard firmware get an upgrade to support it too?
Thanks for your great work!

[TeotiGraphix]

Nice, this list is getting pretty progressive into multiple technologies.

Right on!

[Verbonaut]

Since it was already possible in Juce 5.x for DPI-aware plugins to launch in DPI-aware hosts at a proper high resolution (e.g. Studio One, FL Studio) when I read “The VST client and hosting code has also been updated to support the Windows scaling APIs making it possible to build and host DPI-aware VST2 and VST3 plug-ins on Windows” should I interpret that to mean a non-DPI-aware host running at a traditional low resolution will be able to spawn VST plug-ins at DPI-aware high resolutions? I always thought it was not possible to do that in Windows like it always has been in macOS, so it will be interesting to know if that has changed with this new release.

[alfonso-santimone]

Thanks! BTW it seems that downloads page still points to 5.3.2 version…

[alassandro]

@t0m

Added support for EQ curve graphs via a new AudioProcessor callback AudioProcessor::getAAXCurve()

This is actually AudioProcessor::getResponseCurve()

[matkatmusic]

the ios screenshot shows the safe area being used for notched devices. where is the code showing how to make use of that? grep-ing for safeArea returns nothing…

[RolandMR]

@t0m

NetworkServiceDiscovery::Advertiser and NetworkServiceDiscovery::AvailableServiceList

I assume this is juce specific and not bonjour/zeroconf compatible?

[roeland-2]

Has Visual Studio 2015 support been dropped?

Compiling the demo fails

...\modules\juce_blocks_basics\littlefoot/juce_LittleFootCompiler.h(580): error C2664: 'void juce::littlefoot::Compiler::BlockStatement::addVariable(juce::littlefoot::Compiler::Variable,const juce::littlefoot::Compiler::CodeLocation &)': cannot convert argument 1 from 'initializer list' to 'juce::littlefoot::Compiler::Variable' (compiling source file ..\..\Source\Demos\JUCEDemos.cpp)
...\modules\juce_blocks_basics\littlefoot/juce_LittleFootCompiler.h(580): note: No constructor could take the source type, or constructor overload resolution was ambiguous (compiling source file ..\..\Source\Demos\JUCEDemos.cpp)
[and so on...]

I don’t think you can use an initializer list to construct a struct which also has default values for fields if using Visual Studio 2015.

[ed95]

No, these changes add support for per-monitor DPI awareness on Windows meaning that plug-in UIs will scale dynamically when moving between monitors.

[t0m]

No, that was unintentional. Thanks for reporting, I’ll get it fixed.

[DavidCNAntonia]

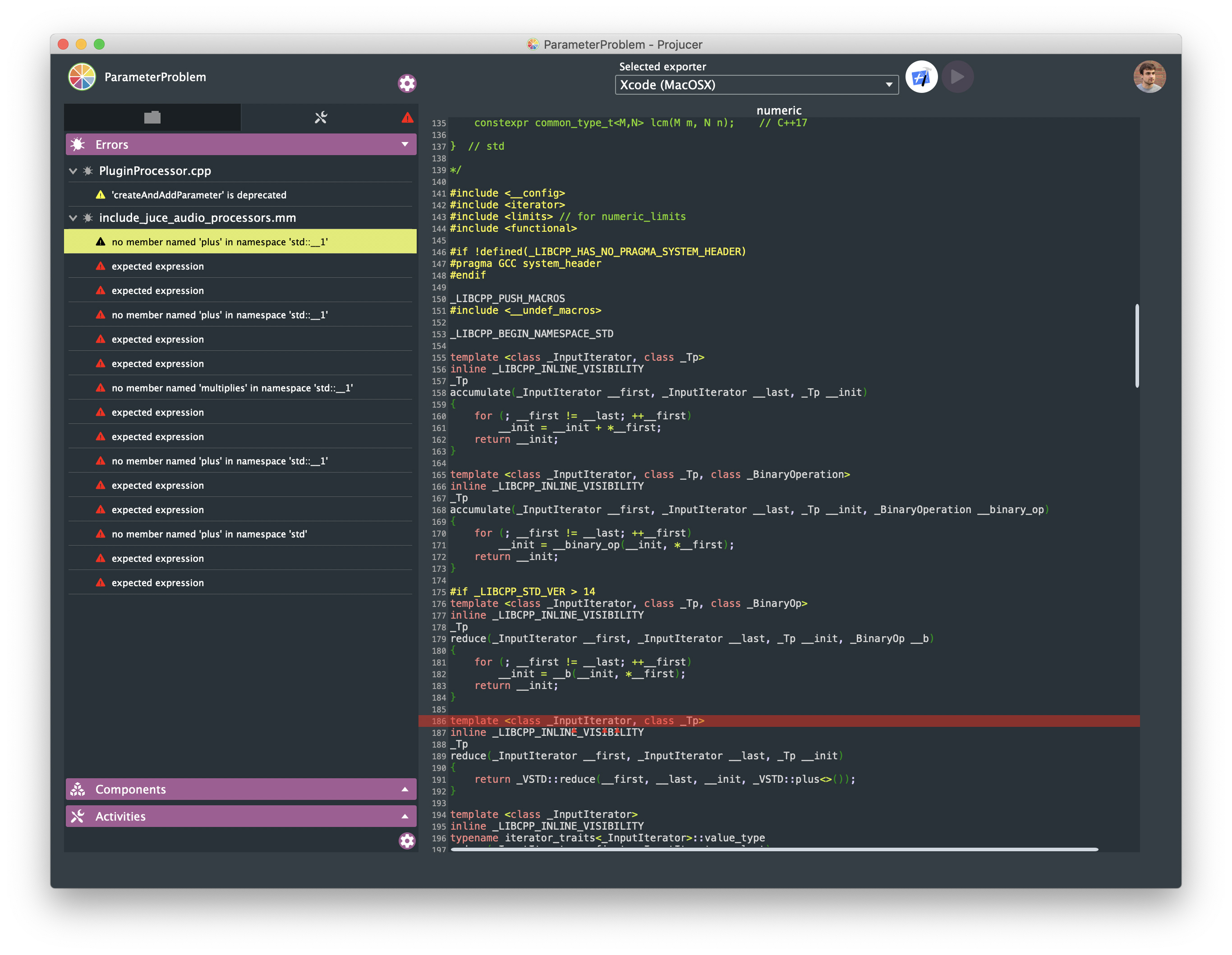

Since updating I am having issues. See screenshot.

Is this even a JUCE issue?

OSX 10.14
Xcode 10.1

[Jack461]

Hi !
I am using Xcode 8.2.1 with OS X 10.11.6.
Trying to compile with JUCE 5.4 some code that was otherwise working in JUCE 5.3.2, I run into the following error:

"juce_AffineTransform.cpp" line 63 of 244

JUCE_DECLARE_DEPRECATED_STATIC (const AffineTransform AffineTransform::identity;)

Default initialization of an object of const type 'const juce::AffineTransform' without a user-provided default constructor

This seems to be due to the fact that the default constructor:

AffineTransform::AffineTransform() noexcept
    : mat00 (1.0f), mat01 (0), mat02 (0),
      mat10 (0), mat11 (1.0f), mat12 (0)
{
}

that was previously in this file has now been deleted.
If I comment out the line “JUCE_DECLARE_DEPRECATED…” everything compiles correctly, so maybe this line should be deleted from the file ?

[jakemumu]

“allowing plug-in hosts to show a hierarchical view of your plug-in’s controls”

are there any examples of where these parameter groups are use or in which hosts?

sounds like a nice feature but would love to know where they’re used and how to check if they’re working!

Best,

J

[holy-city]

check out this post.

[t0m]

Leaving it deprecated for a while would be preferable.

Is the error still there if you change the header from

AffineTransform() = default;

to

AffineTransform();

and put

AffineTransform::AffineTransform() {}

in the .cpp?

[Jack461]

@t0m

AffineTransform::AffineTransform() {}

t0m, thanks for your fast reply.
Yes, this takes care of the problem.
On the other side, a better solution is perhaps not to change the .h, and modify the declaration to:

JUCE_DECLARE_DEPRECATED_STATIC (const AffineTransform AffineTransform::identity (1.0f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f);)

Regards.

[t0m]

Yep, I’ll get that fixed. Thanks for reporting.

[czy-jerry]

The banner of JUCE’s home page is still showing JUCE 5.3, have you forgotten to update it?
