Hi,

just started to discover JUCE (and also Xcode) - have been on the VSCode/embedded side on a low professional level so far - so please be patient and gentle to me :innocent:

I’m struggling to build my first console application to open a AU or VST Plugin and read out available Host Automation parameters.

I had some conversations with ChatGPT to get started at all, however I was not able to get a running application because of ‘no viable conversion’ or missing class members etc.

So I went back a few steps and started very basic:

#include <JuceHeader.h>

int main()
{
    juce::String pluginFilename = "path/to/your/plugin.vst3"; // Replace with your VST3 plugin path

    juce::AudioPluginFormatManager formatManager;
    formatManager.addDefaultFormats(); // Add VST3 format

    std::cout << "Known Formats: " << formatManager.getNumFormats() << "\n";

    ;

    /*
    juce::String err;

    juce::AudioPluginInstance* pluginInstance = formatManager.createPluginInstance(pluginFilename, 44100.0, 512, err);

    if (pluginInstance != nullptr)
    {
        // Your logic to use the plugin instance goes here

        delete pluginInstance; // Remember to delete the instance when done
    }
    else
    {
        // Handle plugin instantiation failure
        std::cerr << "Failed to create plugin instance" << std::endl;
    }
    */
    return 0;
}

As a result I get 0 Known Formats. I would have expected at least 1 (AU) on a mac.
What am I missing?

Can somebody point me to a suitable tutorial / GitHub repo especially handling console applications to get further?

My main problem is, that I was not able to create an instance of an installed plugin on my mac to communicate with…

2

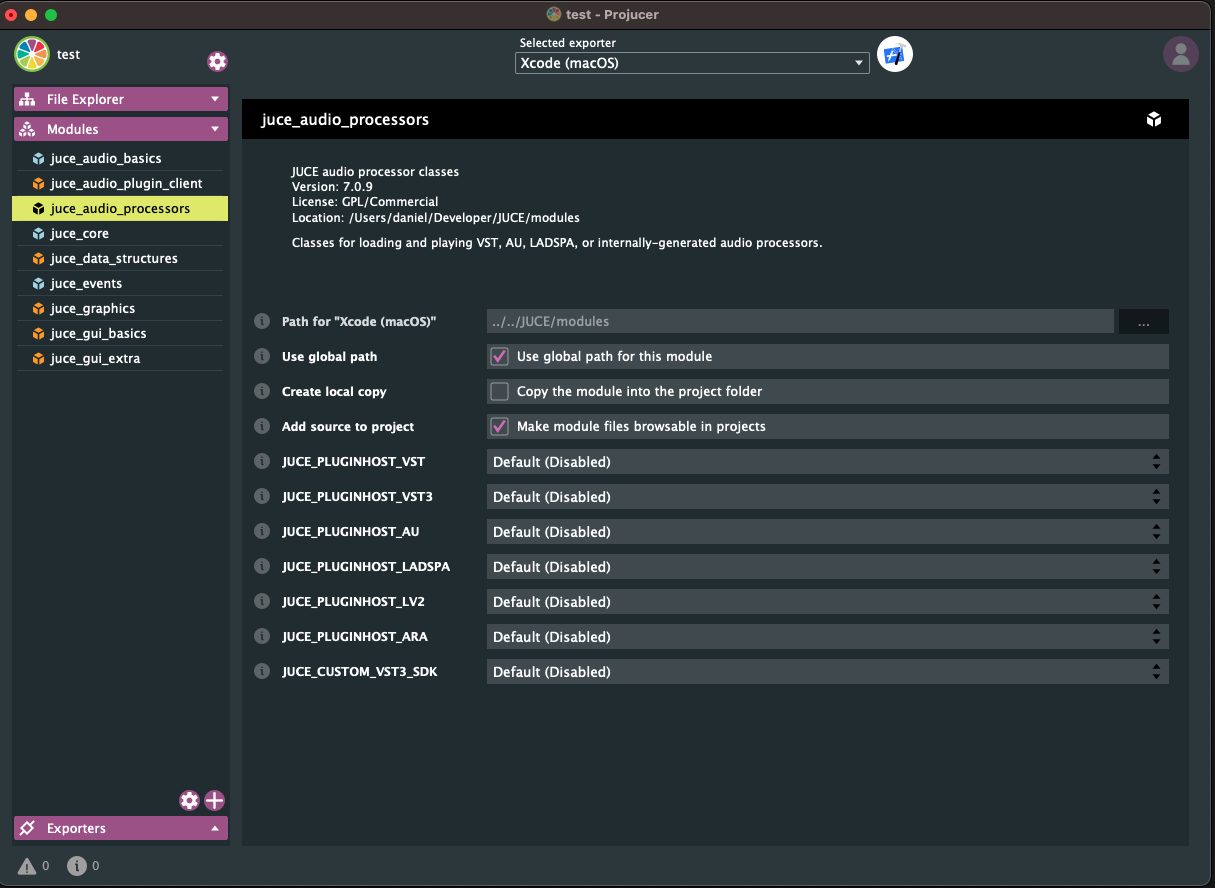

The plugin formats need to be activated in the build settings

Screenshot 2024-01-17 at 11.25.03
Screenshot 2024-01-17 at 11.25.031215×888 96.7 KB

As you can see, they are all off by default.

1 Like
3

:man_facepalming:
It’ the simple things… THX!

Next challenge JUCE_ASSERT_MESSAGE_MANAGER_EXISTS - it will get a long day…

4

It’s a long way… :slight_smile:

Even in a console app you need to initialise the whole event machinery that is usually done in JUCE_START_APPLICATION.

Thankfully you can simply add a member called ScopedJuceInitialiser_GUI in your main().
That should take care of all. Despite the name it doesn’t create a GUI, but allows the necessary interactions with the OS.

const juce::ScopedJuceInitialiser_GUI init;
