Circular Drum Sequencer

[leventtasel]

I am re-writing some idea I tried in browser based on Tone.js and P5js to learn JUCE better with a project…

here is the prototype that wasn’t written in JUCE:
http://leventtasel.com/davul.html
(you can click around for different functions… center will start the sequence, left and right areas will change bpm and clicking on circles will add/remove bits for the sequence)

Now I have a working code just for the interface again, written in JUCE but I don’t know how to approach the sound portion in JUCE.

I have been looking at examples but there is no higher level structures I came accross that Tone.js provided such as Player or Tone.Transport to schedule the sound files to play in a loop.

Before I waste more time searching… as only thing close to this, I found was an existing thread with a broken link from 2010 (I built a basic drum sequencer)

I wanted to ask here to see if there might be an example implementation I could follow and if there were some high level structures I am missing that would make it easier to implement without getting too much into buffers

Thanks in advance \o/

[leventtasel]

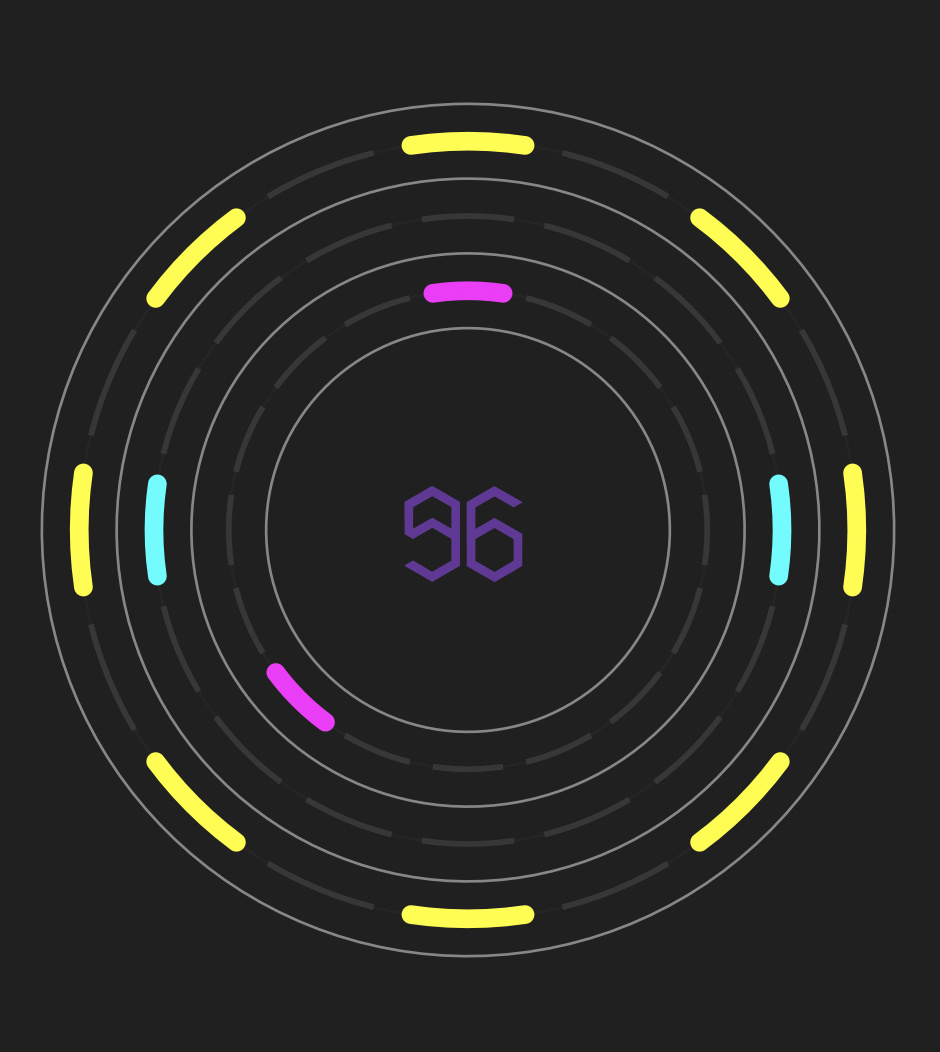

Here is how it looks like so far for the interface btw:

[leventtasel]

I decided I would go forward doing the sound bits using Synthesiser class and SamplerSound, SamplerVoice classes…

I managed to read in the binary sample wav files referencing this discussion:

Binary .wav to AudioBuffer?

Indeed, the createReaderFor is not yet converted to return an unique_ptr. But you can create one yourself: void readAudioFile(AudioSampleBuffer& buffer, const void* data, size_t sizeBytes) { WavAudioFormat wavFormat; auto* inputStream = new MemoryInputStream (data, sizeBytes, false); // createReaderFor will take ownership std::unique_ptr<AudioFormatReader> reader (wavFormat.createReaderFor (inputStream, false)); if (reader.get() != nullptr) { buffer.setSize(reader->numChannels, reader->l…

and a youtube video I found:

Build a Sampler VST Plug-in with JUCE Part 1 - Loading and Playing

In that video, it is mentioned that I need to call renderNextBlock within a loop it sounds like to render the audio to some output. I set the project up initially as an Animated Application… So I only have my main Component.

Would it be acceptable to call this audio rendering function within the component update call somehow?

I am worried about frame dropping on mobile and going out of sync.

Is there a preferred place to call this renderNextBlock function?

[leventtasel]

Doing more digging… I feel like I can use this class called AudioDeviceManager with my AnimatedAppComponent.

If anyone would suggest a different approach to perhaps put a Timer on AudioAppComponent or a code that I can look for reference, that would be greatly appreciated \o/

[leventtasel]

I ended up changing my component into AudioAppComponent and subclassed Timer as well to do the sequencing. getNextAudioBlock, prepareToPlay was a little more convenient than initializing the device as a member, for future reference…

[leventtasel]

Here is the code, if anyone would be willing to kindly provide review and feedback or otherwise someone may find it useful:

leventt/davul
