Rendering issue AU in Logic

[leehu]

Hi, have a strange rendering issue for popups.

I have this code to render rounded corners on popups:

    g.setColour( findColour( PopupMenu::backgroundColourId ) );
    g.fillRoundedRectangle( 0, 0, width, height, 4 );

    g.setColour( findColour( PopupMenu::textColourId ).withAlpha( 0.6f ) );
    g.drawRoundedRectangle( 0, 0, width, height, 10, 1 );
}

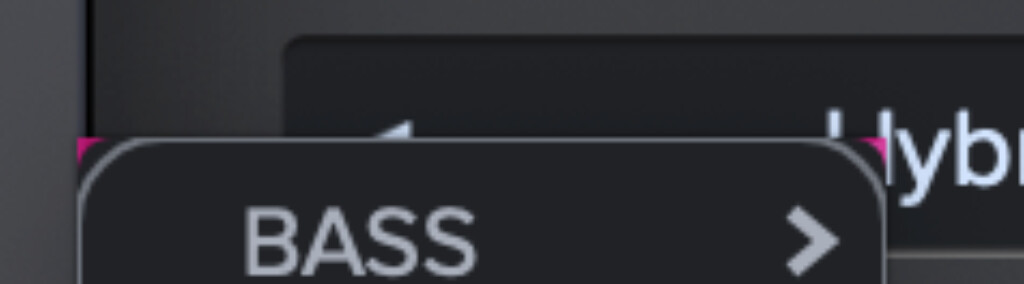

which generally works fine. However, in Logic there are little pink spots where the rounded corners are.

In other DAWs these appear an non-opaque, so figure this is a Logic rendering issue, but just wondered if anyone had any suggestions. The same AU renders fine in Live.

Thx

[reuk]

This topic is covered thoroughly here:

BUG? Popup Menu Background and Logic Silicon

Logic Pro 10.6.0 and 10.6.1 on Big Sur silicon, JUCE on develop tip. The background of popup menus is showing a pink-ish background instead of being transparent: [Screenshot 2020-12-14 at 14.07.33] On other hosts on silicon (Live, Reaper, DP), and also on Logic Pro 10.5.1 on Mojave, the background is showing correctly: [Screenshot 2020-12-14 at 14.07.51] In drawPopupMenuBackground I’m using g.fillAll (Colours::transparentBlack);. Could this be just Logic’s fault?

[leehu]

hey - thanks for the pointer!
