Aeffectx.h file not found

[kfarrell]

Hi guys,

Sorry to bother you with something I’m sure is quite simple that I’ve overlooked. I have Juce installed in ~/JUCE as well as Steinberg’s VST3 SDK in ~/SDKs/ and when I try to build pluginhost I get ‘pluginterfaces/vst2.x/aefectx.h’ file not found.

In tools Globalpreferences I have both VST SDK and VST3 SDK set to ~/SDKs/VST3 SDK and both are black.

I’m running OSX 10.11.6 and the latest xcode from the appstore.

I’m pretty sure everything is right but I just can’t get it to compile.

Thanks for your time

[fr810]

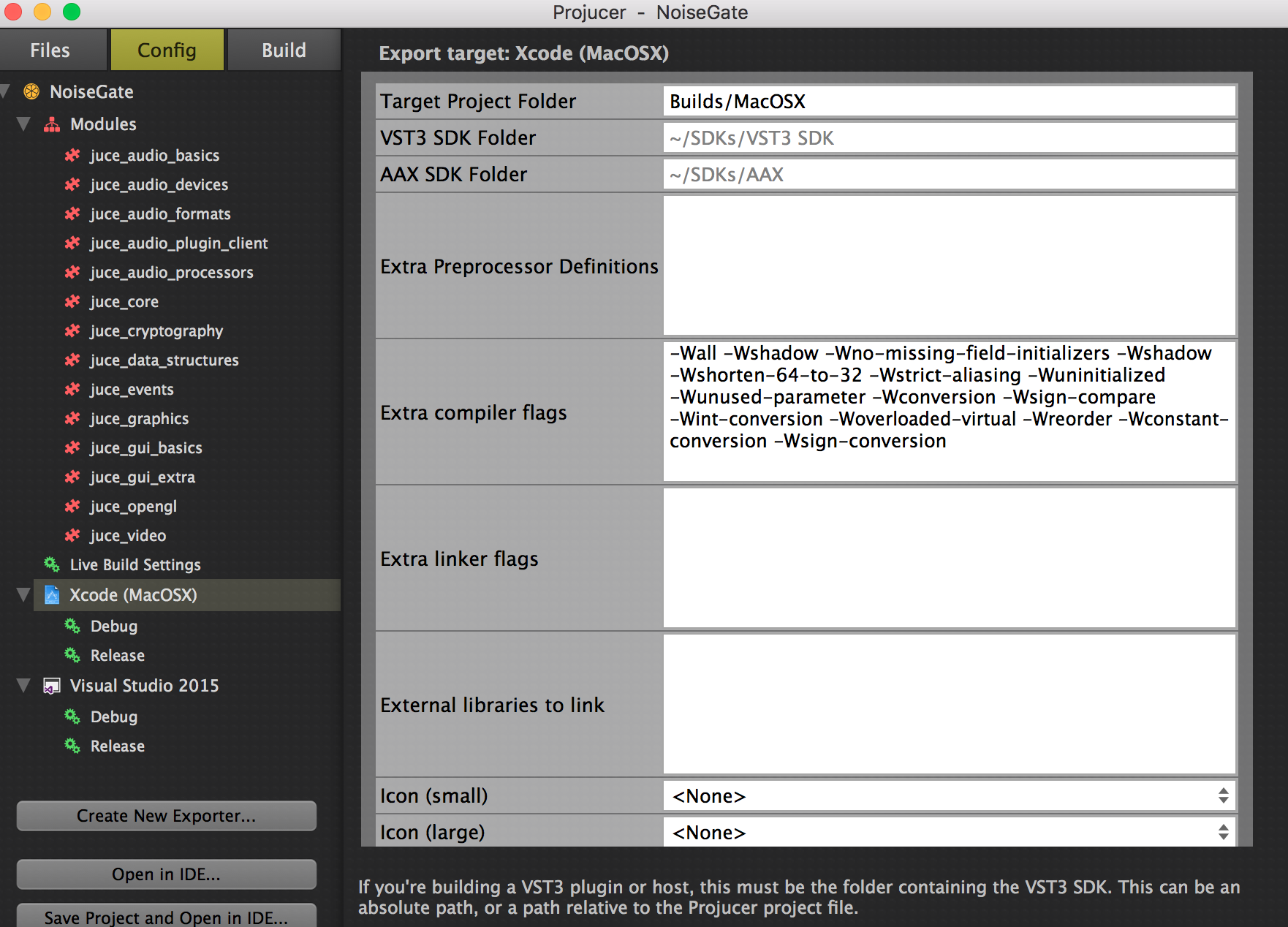

The global preferences will only be used if the .jucer file does not override the SDK location. Check the VST3 SDK path property in the config page of your exporter:

If it is grey (like in the above screenshot) then the value in the global preferences are used.

BTW: If you are on the develop branch, then you only need the VST3 SDK if you are creating a VST3. JUCE does not require an SDK for VST2 anymore.

[kfarrell]

Thanks for your useful reply, unfortunately both are pointing to the correct spot.

[martinrobinson-2]

Go to the Report Navigator in Xcode:

And select the latest build (yours will show as failed).

Scroll down to find where it says “Compile juce_audio_plugin_client_VST2.cpp” and click the little document icon to the right to expand:

You should see what path Xcode is trying to use. I’ve highlighted mine:

Does that give any clues?

[kfarrell]

Thanks for your reply, just for giggles while I was in xcode looking at the Report Navigator I did a build and it compiled and ran. In Projucer I keep getting that error though.

[t0m]

Have you tried compiling the latest version of the Projucer?
